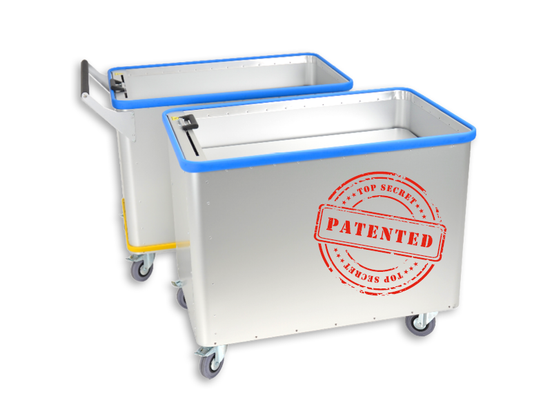

Patented Order Picking Cart
G®-ERGO flex made of Aluminum
![[Translate to English:] Kommissionierwagen aus eloxiertem Aluminium](/fileadmin/_processed_/6/1/csm_ERGO_flex_d065a827bc.png "[Translate to English:] Kommissionierwagen aus eloxiertem Aluminium")
The well-known Gmöhling spring floor trolleys made of aluminium have been further developed into an ergonomic order picking trolley with infinitely adjustable spring force - the long-awaited solution for your intralogistics!
Particularly suitable for ergonomic and thus cost-saving order picking and returns management.
Depending on the weight of the goods to be picked, the spring force can be adjusted during the picking tour with a flick of the wrist, without tools - without conversion - ergonomic work is possible at the highest level.
We bring flexibility
in your logistics!
Advantages G®- ERGO flex
- Individually adjustable spring force depending on the product – fastest work at the highest level!
- Intuitive operation without prior knowledge
- Constant loading and unloading height even with goods of different weights
- Unique on the market
- Low dead weight
- Made of anodised aluminum - light, robust and abrasion resistant
Product description
Constant loading and unloading height; the weight of the load allows the base to continuously drop down. The base rises slowly when the trolley is unloaded.
- Smooth and anodised surface
- Walls and aluminium profiles are interlocked by means of clinching, making them extremely stable
- Smooth side walls reduce the friction of the load; the spring-loaded trolley reacts immediately to any change in weight
- All-round, extremely stable profiles at the top and bottom on the rims of the trolley
- Parallel and torsion-free guidance of the drop-down floor by means of 8 covered ball bearings, even with one-sided loading
- Continuously adjustable in the working process
- Spring force easily adjustable – lightly pull the handle upwards and then slide it
- Spring force from approx. 25 to 70 kg – continuous adjustment range of approx. 45 kg
- Flexible adjustment possible at anytime
- With closed base for driving underneath with pallet truck or fork-lift truck
- Wheel arrangement E: 4 swivel castors, 2 of which have brakes and one fixed castor, with spring suspension for secure floor contact and good directional stability
- Wheel-Ø: 125 mm, wheels with minimal starting resistance
- Galvanised steel wheel housing, polyamide wheel centre,with polyurethane tread and precision ball bearing
Other versions:
Modell D 5405 ERGO flex:
- Ergonomic push handle quick grip- for self-assembly, incl. fixing material
Simple Operation
- Spring force easily adjustable – lightly pull the handle upwards and then slide it
- Continuously adjustable in the working process
- Spring force from approx. 25 to 70 kg – continuous adjustment range of approx. 45 kg
- Flexible adjustment possible at any time
G®-ERGO D 5405 flex - Modell-Varianten
| Model number | Wheel arrangement | Dimensions LxWxH (approx. mm) | Volume (approx. l) | Wheel -Ø in mm | Spring force (approx. kg) | Load capacity (approx. kg) | Weight (approx. kg | Order number | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Request | ||||||||||||
| internal | external | |||||||||||
| D 5405/480 flex | ???? | E | 1070 x 740 x 610 | 1180 x 780 x 895 | 480 | 125 | 25 - 70 | 130 | 56 | 022540501 | ???? | |
| D 5405/480 flex Griff | ???? | E | 1070 x 740 x 610 | 1435 x 780 x 1040 | 480 | 125 | 25 - 70 | 130 | 58 | 222540502 | ???? | |
Downloads
Interested?
We cater to your individual wishes and needs, whether other dimensions, spring forces, different handles, ladders, bumpers and wheels - contact us.
